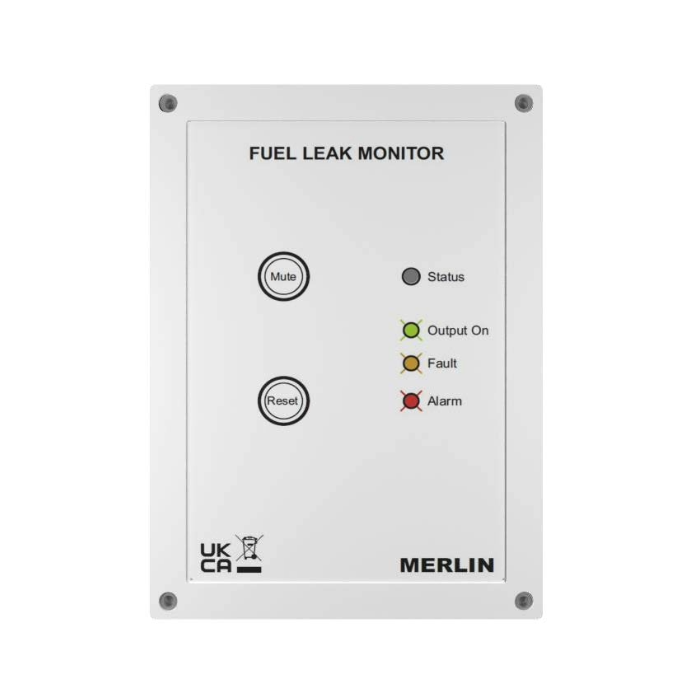

FLM – Fuel Leak Detection Controller

  • Designed to work with Merlin FLMC 2 core cables
  • 230V or 24V Solenoid valve isolation
  • 230V or 24V Power supply
  • LED status indicator – fault & alarm
  • In-built 60dB audible alarm
  • Covered by S&S Northern’s 3 Year Warranty

Description

The Merlin FLM system is the S&S Northern permanent fuel leak detection system, tailored for use in applications such as fuel storage tanks, oil refineries, transportation fleets, aircraft fueling systems, and power generation plants. The Merlin FLM can function as a standalone unit or be integrated into a larger multi-zone detection network.

It comes with a clear LED status display, providing real-time monitoring for hydrocarbon fuel leaks, ensuring safety and compliance in projects involving fuel handling, storage, and transport systems.

TECHNICAL SPECIFICATIONS
GENERAL SPECIFICATION USER INTERFACE
Enclosure Dimensions 151 x 111 x 50mm (5.95 x 4.37 x 1.97”) Display Single tri-colour LED for Fuel On, Fault (Disabled) and Alarm
Enclosure Material ABS PA765 (Flame Rating UL94 V-1) Buttons Mute and Reset push buttons mounted under the label
Weight TBC Audible Indicator Internal Buzzer
Approvals UKCA, ROHS, complies with UL61010
ELECTRICAL LED INDICATORS
Power Supply 230VAC and 24VAC/DC Power On (RED) Power LED as part of S&S logo
Oil Solenoid Valve Output Volt free NC/COM/NO, max 3A @ 230V Fuel On Green
BMS Relay Output Volt free NC/COM/NO, max 3A @ 230V Fault Disabled On This Model
Strobe Relay Output Volt free NO/COM, max 3A @ 230V Alarm Red
INSTALLATION OPTIONS USER CONTROLS
Potentiometer Adjustable alarm point Reset and Mute 2 momentary push buttons
